Product Description

Roccoda Super-Slim LED Panel Light is a power LED office & home lighting fixture. It uses 3014 SMD led chips as the light sources which are more brightness compare with the traditional 3528 led.

For the cover, we use the high quality PMMA (Acrylic) which is high rate of the beam transparent. It is about 94% in rate.

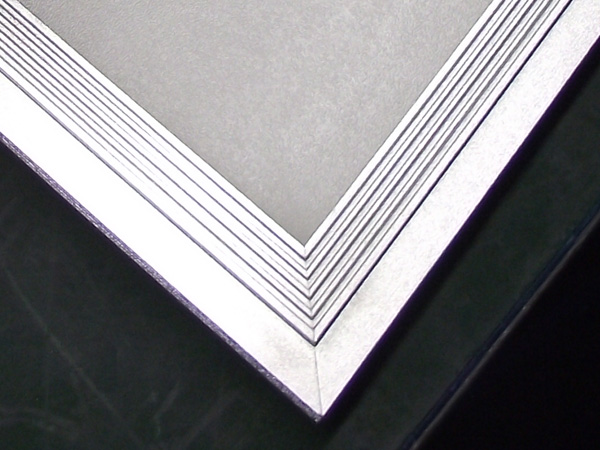

We use the high quality oxidized aluminum frame as our lighting frame which is beautiful in outlook and stable.

Advantage:

Energy saving up to 50%, high intensity

No electric wave

No RF interference

No such hazard that mercury or lead enters the environment.

Unique Lamp appearance design

Energy-saving and environment-friendly

Leading heat sink design, excellent heat eliminating

No UV or IR radiation

No flashing

Robust and long lasting

Replacement for incandescent lamps.

Great for under-cabinet and other low voltage applications



Applications:

The LED Light Panel is ideal replacement for the traditional down lights.

It has wide range of applications such as:

Jewelry counter lighting

Commercial lighting

Restaurant, hotel

Artwork lighting

Display case

Amusement park

Home and office lighting

60*60 Led panel light

Parameter:



Model No.

RCP-3060-18

RCP-3060-27

RCP-3060-36

Lighting Source

Lumenmax SMD 3014LED

Dimension

295*595*9mm

295*595*9mm

295*595*9mm

Power

18W

27W

36W

LED QTY

180pcs

264pcs

360pcs

Input Voltage(Driver)

90~135VAC & 175~265VAC/ 50-60Hz

Constant Current

900mA

PF

85%

CCT

>0.95

Luminous

1300Lumen

2000Lumen

2700Lumen

Luminescence efficiency

75Lumen/W

Beam Angle

120Degree

RA

RA>75

Temperature Rising

<20degree

Protection Grade

IP44

Insulation Class

CLASS 2

Environmental

All materials meet with RoHS compliance

Certification

CE & RoHS Compliance



Warranty: Three Years

For more information about Roccoda, please click Roccoda

For more information about led Panel light , please click  Led Panel Light
