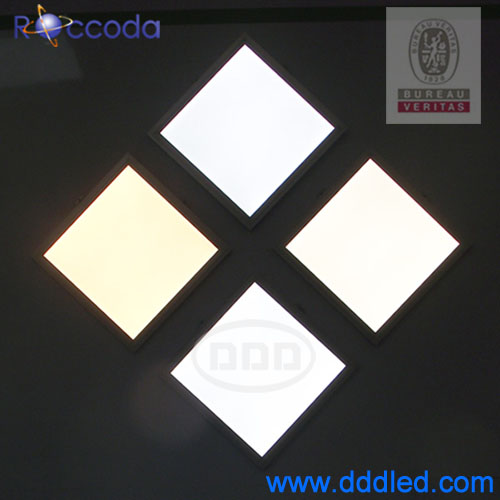

Roccoda Super-Slim LED Panel Light is a power LED office & home lighting fixture. It uses 3014 SMD led chips as the light sources which are more brightness compare with the traditional 3528 led.
For the cover, we use the high quality PMMA (Acrylic) which is high rate of the beam transparent. It is about 94% in rate.

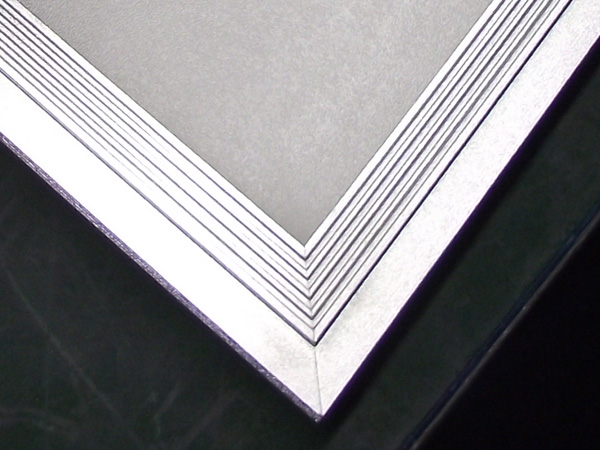

We use the high quality oxidized aluminum frame as our lighting frame which is beautiful in outlook and stable.
Advantage:
Energy saving up to 50%, high intensity
No electric wave
No RF interference
No such hazard that mercury or lead enters the environment.
Unique Lamp appearance design
Energy-saving and environment-friendly
Leading heat sink design, excellent heat eliminating
No UV or IR radiation
No flashing
Robust and long lasting
Replacement for incandescent lamps.
Great for under-cabinet and other low voltage applications

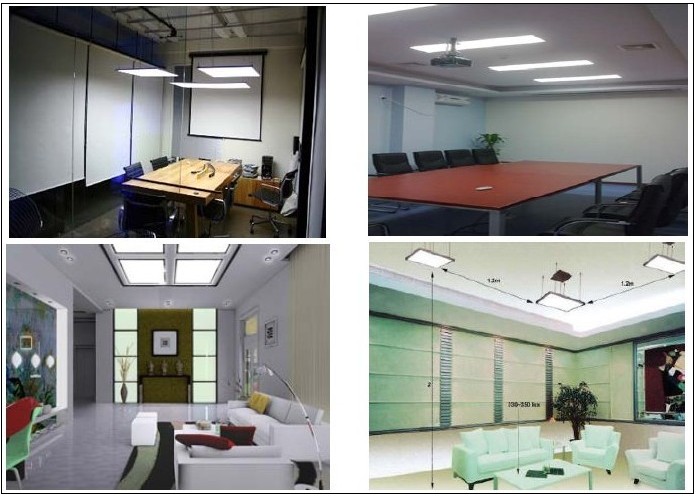

Applications:
The LED Light Panel is ideal replacement for the traditional down lights.
It has wide range of applications such as:
Jewelry counter lighting
Commercial lighting
Restaurant, hotel
Artwork lighting
Display case
Amusement park
Home and office lighting
Parameter：
|
Model No. |
RCP-3030-18 |
RCP-3030-36 |
|
Lighting Source |
Lumenmax SMD 3014LED |
|
Dimension |
295*295*9mm |
295*295*9mm |
|
Power |
18W |
36W |
|
LED QTY |
180pcs |
360pcs |
|
Input Voltage(Driver) |
90~135VAC & 175~265VAC/ 50-60Hz |
|
Constant Current |
900mA |
|
PF |
85% |
|
CCT |
>0.95 |
|
Luminous |
1300Lumen |
2700Lumen |
|
Luminescence efficiency |
75Lumen/W |
|
Beam Angle |
120Degree |
|
RA |
RA>75 |
|
Temperature Rising |
<20degree |
|
Protection Grade |
IP44 |
|
Insulation Class |
CLASS 2 |
|
Environmental |
All materials meet with RoHS compliance |
|
Certification |
CE & RoHS Compliance |
