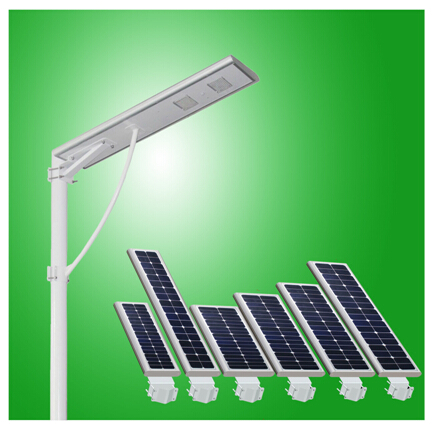

20W Integrated Solar LED Street Light
Brand Name: Roccoda Product Model: RST-S30W Product Origin: Shenzhen Delivery Time: 7-10 days Supply Ability: 2000pcs/month Product Certification: CE,ROHS,FCC,SAA Type Or Payment: TT Features: 20W,Integrated Solar LED Street Light all in
Brief: Model RST-S20W RST-S25W RST-S30W RST-S40W RS-S60W
Our integrated solar street light which integrates the green-energy parts solar panel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it’s convenient in the shipment and installation.
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or parking area or provide the light in roads where it’s necessary, the battery provide the energy for lighting, and the solar panel charge for the battery.
Product parts:

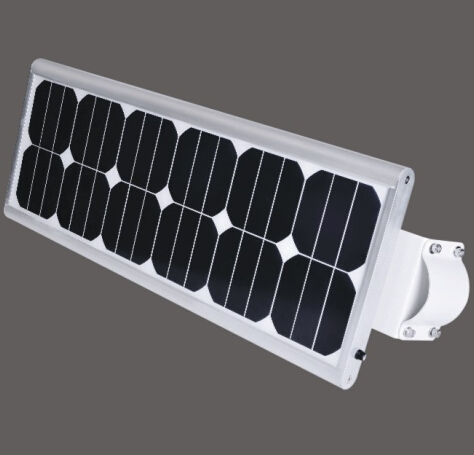

The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work in night automatically by light sensor control, and provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary
Led Power
20w
25w
30w
40w
60w
Solar Panel
40W(MONO)
50W(MONO)
60W(MONO)
60W(MONO)
80W(MONO)
Human body sensing
YES
YES
YES
YES
YES
Dimension
920X330X140mm
1170X330X140mm
1170X330X140mm
1170X330X140mm
1200X380X160mm
Net weight
12.5KG
16KG
16.5KG
17KG
22KG
Full load working
2200lm
2750lm
3300lm
4400lm
6600lm
Less load working
660lm
800lm
1000lm
1320lm
1980lm
CCT
6000K/3000K
6000K/3000K
6000K/3000K
6000K/3000K
6000K/3000K
Work time(Full power)
≥20Hr
≥15Hr
≥15Hr
≥15Hr
≥15Hr
Work time(Saving mode)
≥40Hr
≥30Hr
≥30Hr
≥30Hr
≥30Hr
Install high
5～7m
5～7m
5～7m
5～7m
7～9m
Light spare
10～20m
10～20m
10～20m
10～20m
25～30m
After service
the guarantee of this led mining light is five year, if there is any quality problems within this 2 year, we changing accessories for free.
